PALLET DISPENSER
48 x 40 standard
48 x 40 adjustable to 48 x 48
Fully adjustable wide pallet 48 x 80
MACPal OF
GET A QUOTE
“MACPal “OF”– picks from multiple lanes on a per order basis and builds finished order pallets of 10 or more multiple SKUs at one time.”
MACPAL OF
The MACPal “OF”– is designed for robotic palletizing of mixed cases. This system developed by MESH has a robot on a linear rail system with a unique WIP rack that can accommodate 10 or more (depends on rail length) different lanes of pallets with each pallet having a different product SKU. The MACPal “OF”– picks from these lanes on a per order basis and builds finished order pallets of 10 or more multiple SKU’s at one time.
MESH has designed several optional “bolt on” process modules such as a pallet dispenser, slip sheet dispenser and multiple robot end of arm tools that are perfect compliments to the MACPal “OF”– and can be seamlessly integrated.
The pre-engineered features and options make for a great value with quick deliveries, while also allowing for easy size and layout customization.
BASE SPECIFCATIONS AND PERFORMANCE FEATURES
| MODEL | MALPAL "OF" |
|---|---|
| Robot brand | ABB, FANUC and Yaskawa |
| Throughput | Dependent on customer requirements and products |
| Robot Payload | 180kg to 300kg |
| Changeover | No tool, pushbutton recipe driven from the HMI. Bar code scan is optional |
| Operating Environment | Designed for a harsh environment – dusty with occasional fluids present |
| Case input | Cases are on pallets with a consistent pattern |
| Pallet output | chain driven live roller conveyor and chain conveyor |
| Safety | Fully Compliant with ISO 12100 and ANSI/RIA R15.06-2012 safety standards. ABB Safemove II, FANUC DCS or Yaskawa Motoman FSU |
| Machine color | RAL 9003 or customer spec |
| Guarding type | Mesh fencing with access doors protected by locking permit to entry safety switches |
| High Voltage Controls | Segregated high voltage power distribution panel |
| Low Voltage Controls (Rockwell) | Rockwell MicroLogix L30, Dual ethernet, Safety PLC |
| Low Voltage Controls (Siemens) | Siemens S7 1200F dual Profinet, Safety PLC |
| HMI (Rockwell) | PanelView Plus 7, Touch Screen, 10.4 inches |
| HMI (Siemens) | SIMATIC TP900, 9 inches |
| Connections | Electrical: 460VAC, 30Amp, Pneumatic: 85psi min. |
OPTIONAL BOLT-ON MODULES

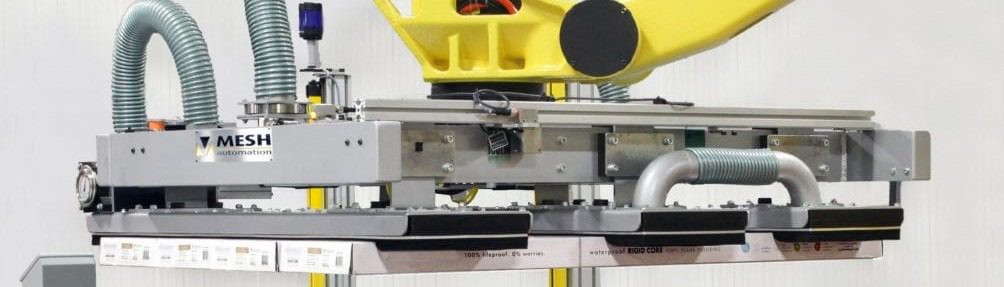

ROBOT END OF ARM TOOL (EAOT)
Bag with suction
Bag with claw
Corrugated case
Tote
SLIP SHEET DISPENSER
Slip sheet dispenser for 48” x 40” corrugated slip sheets
TOTE DISPENSER
STRETCH WRAPPER
Stretch wrapper (MESH works with several well known stretch wrapping OEMs.)
LABELING OF PALLETIZED LOAD
Label application
Label print and apply
Label verification of print
SDV OR AMR
Self Driving Vehicle (SDV) or Autonomous mobile robot (AMR) output of pallets – Omron brand HD-1500
CONFIGURABLE OPTIONS
- Process camera packages
- CCTV camera with TV or industrial monitor mounted to the outside of the cell.
- Industry 4.0 data packages
- Custom Material Handling
- Complete conveyor packages for infeed and outfeed
