Product Description
Built around Yaskawa’s PL-series palletizing robots, this system brings fast, precise motion and compact design to high-duty box palletizing. Backed by MESH’s 26 years of automation experience, it’s a refined, ready-to-install solution that simplifies deployment and delivers repeatable results from day one.
Our YASKAWA Palletizer for Boxes Comes with these Standard Options Included:
- Two outbound palletizing positions
- One infeed conveyor pick position
- 48 in x 40 in max pallet size
- Shipped as a skid mounted, pre wired cell for rapid deployment
- Integrated MACControl System: Fully integrated control stack with HMI-equipped control panel and interlocked power panel (480 VAC supply).
- Comprehensive 1 year warranty
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing industries
- Scales easily across multiple sites, creating standardized performance
YASKAWA Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the Yaskawa-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for closed-top boxes, cartons, and cases (products that can be picked with vacuum)
- Throughput: 6 – 8 cycles/min (application dependent)
- Payload: single-pick grip: 1 x 25 kg box; optional dual-pick 2×25 kg
- Vacuum end-of-arm tooling proven across palletizing applications
- Stack height: 80″ standard; 108″ with extended reach option
- Available in COMPACT and STANDARD layouts
- Designed for clean IT connectivity and cybersecurity in modern plant networks
- NFPA 79 compliant controls; UL 508A certification available
- Pre-engineered, fully wired cell ships ready for installation in under a day
- Safety Features Include: Risk assessment completed on base system & Light curtain protected palletizing positions

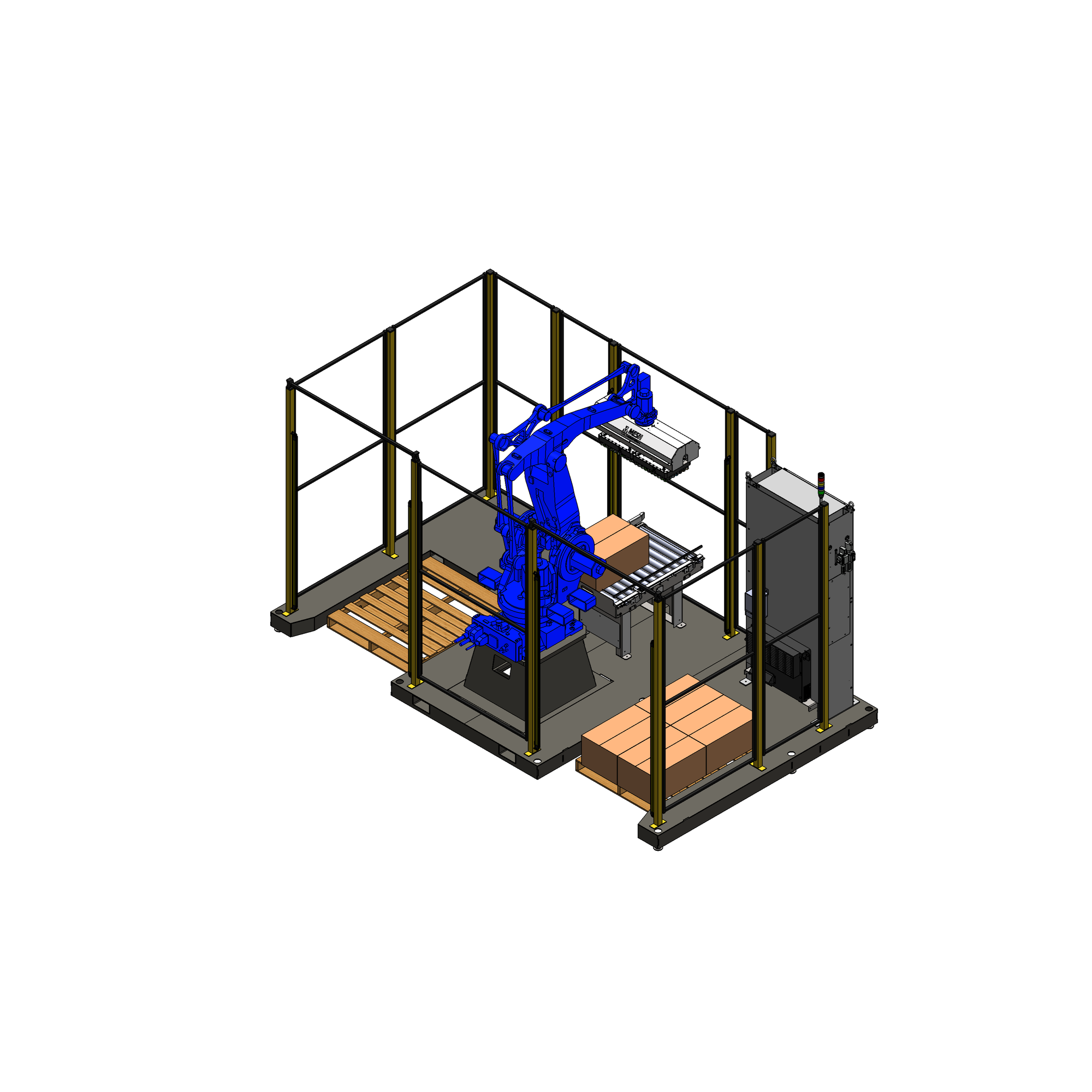

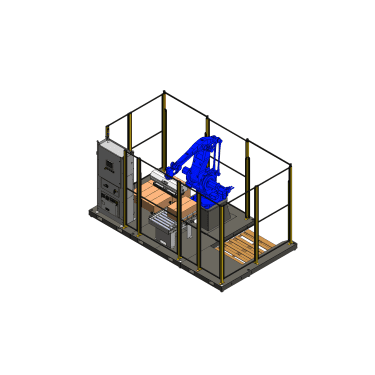

YASKAWA Robotic Palletizer for Boxes, Fully Assembled
