Product Description
Configuration Options

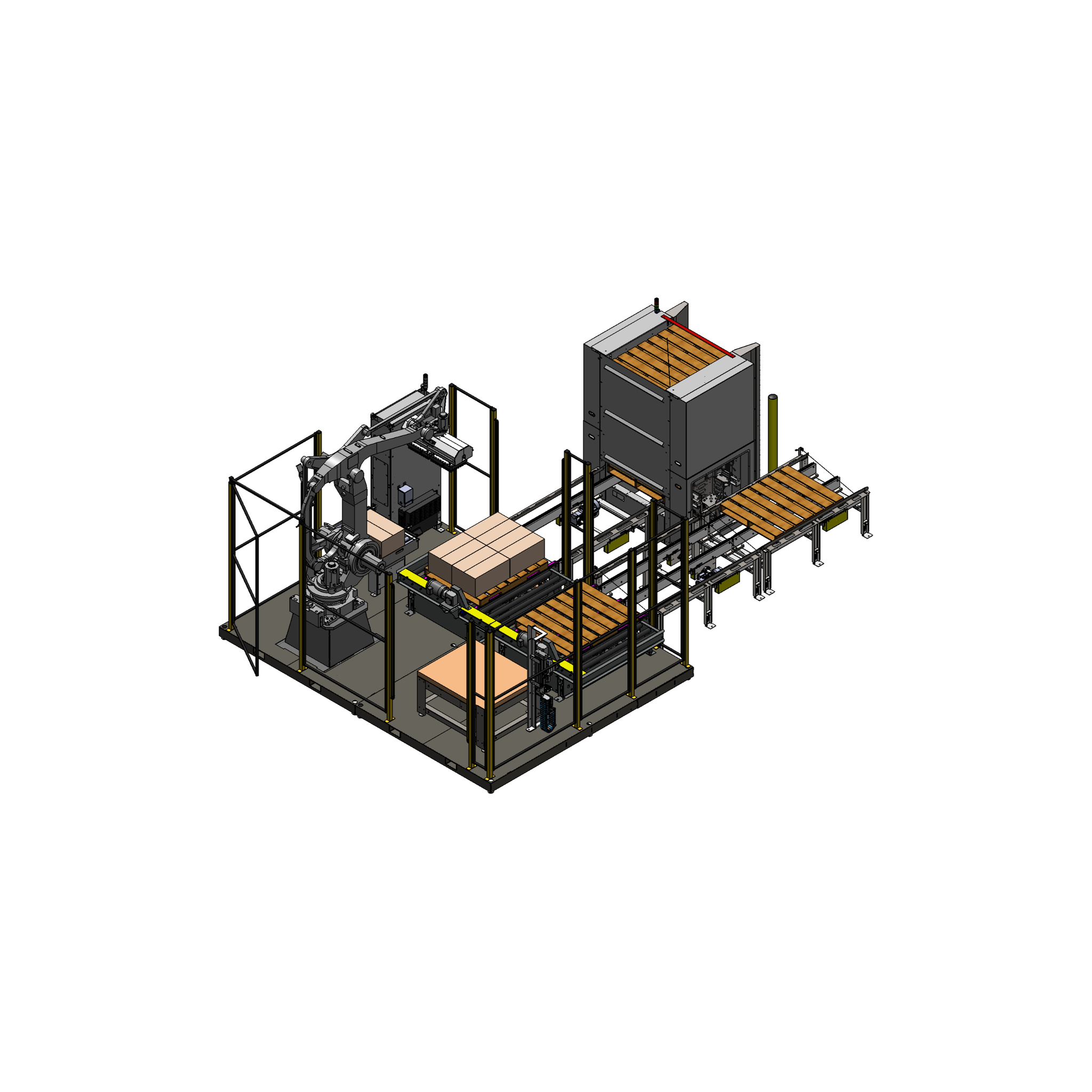

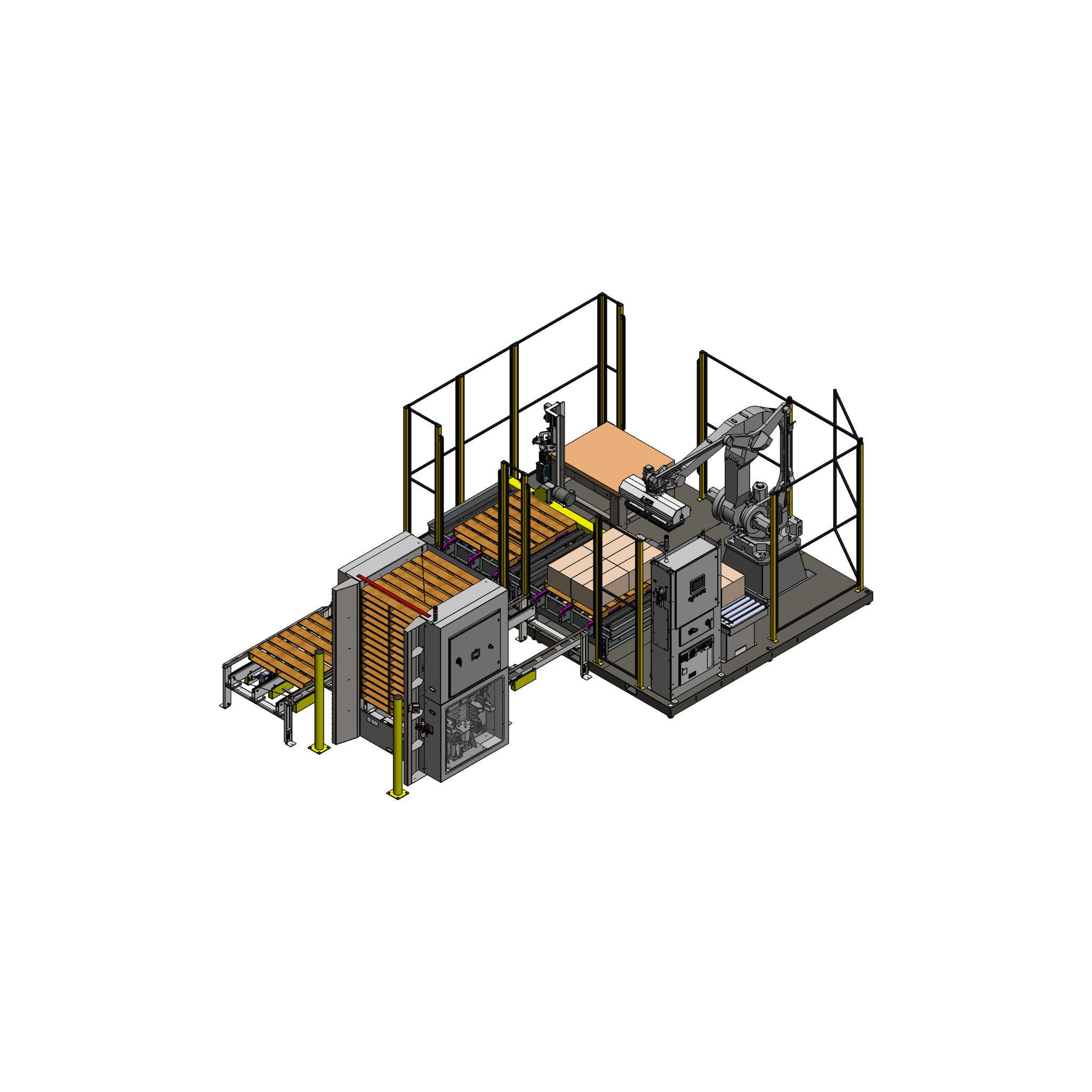

MACPal for cases is MESH’s turnkey palletizing system powered by the ABB IRB660 robot and backed by 26 years of MESH Automation deployment experience. This configuration is a variation of MESH’s standard MACPal palletizing cell, enhanced with automated pallet handling and an automatic pallet destacker to reduce manual pallet staging, limit forklift interaction, and support more continuous operation.
Our Fully Automated ABB Robotic Palletizer for Boxes Comes With These Standard Options Included
- Automatic pallet handling system with one stacking location and one finished goods outfeed
- One infeed conveyor pick position
- Automated 15-pallet capacity pallet dispenser
- Slip sheet magazine with a light curtain
- 16’x12’ metal skid with forklift pockets
- 48” x 40” max pallet size
- Comprehensive 1-year warranty
- Risk assessment
- Light curtain protected palletizing position
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through the removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in the warehousing industries
- Scales easily across multiple sites, creating standardized performance
ABB Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the ABB-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for closed-top boxes, cartons, and cases
- Throughput: 6 to 8 cycles/min (application dependent)
- Payload: 1 × 25 kg per cycle; optional dual-pick 2 × 25 kg
- Stack height: 108 in standard
- Available in COMPACT and STANDARD layouts
- Designed for clean IT connectivity and cybersecurity in modern plant networks
- NFPA 79 compliant controls; UL 508A certification available
- Pre-engineered, fully wired cell ships ready for installation in under a day
- Safety Features Include: Risk assessment completed on base system & light curtain protected palletizing position
| Category | Option | Price Adjustment |
|---|---|---|
| Base Cell |
STANDARD: One Outbound Palletizing Position One Infeed Conveyor Pick Position, 16’ X 12’ Metal Skid with Forktruck Pockets, 48” X 40” Max Pallet Size, Automated 15 Pallet Capacity Pallet Dispenser, Slip Sheet Magazine with Light Curtain |
Included |
| Robot |
STANDARD: ABB IRB660 108” Stack Height - 180kg Robot Payload and 3.1 M Reach |
Included |
| End of Arm Tool |
STANDARD: Vacuum Style, Dual-Pick 25kg Box Payload, Box Size Max (mm) (l x w x h) = 450 x 350 x 450, Box Size Min. (mm) (l x w x h) = 200 x 150 x 80, Larger single box handling up to 25 kg, Box Size Max (mm) (l x w x h) = 800 x 350 x 450 |
Included |
|
Vacuum Style, Single-Pick 25kg Box Payload, Box Size Max (mm) (l x w x h) = 450 x 350 x 450 |
-$5,347.00 | |
| Controls | STANDARD: Siemens PLC | Included |
| STANDARD: Stack Light | Included | |
| Rockwell Compact GuardLogix PLC | +$4,340.00 | |
| HMI | STANDARD: 10” Weintek Color Touchscreen | Included |
| 10” Rockwell PanelView Plus 7 | +$4,327.00 | |
| 10” Siemens SIMATIC HMI MTP1000 | +$3,734.00 | |
| Infeed Conveyor and Box Registration Device | STANDARD: 48”l x 18” Roller Face Mdr 2 Zone Conveyor w/ Twin Rod Box Pusher | Included |
| 96”l x 18” Roller Face Mdr 4 Zone Conveyor w/ Twin Rod Box Pusher | +$3,512.00 | |
| Pallet and Slip Sheet Feeding Systems | STANDARD: Automated 15 Pallet Capacity Pallet Dispenser | Included |
| STANDARD: Slip Sheet Magazine | Included | |
| Corner Pickup Option on Slip Sheet Dispenser | +$14,826.00 | |
| Commissioning | One Week of Onsite Commissioning, Training and Production Support | +$13,750.00 |
| Service | Yearly Service Plan with < Four-Hour Response Time During Business Hours | +$4,394.00 |
| Yearly Service Plan with < Four-Hour Response Time 24/7 | +$8,589.00 | |
| Remote Support | Remote Access Hardware Device Provided by Mesh | +$1,369.00 |
| Have Mesh Use Your Existing VPN Client | +$1,700.00 | |
| Other Options | Extended Warranty, +1 Year (2 Years Total) | +$7,600.00 |
| Convenience Panel for Ethernet and 110v Power Connection Outside the Panel. | +$494.00 | |
|
Bar Code Reader pricing TBD Based on Project Details and Build) |
TBD |
ABB Robotic Palletizer for Boxes with Pallet Handling
Product Description
MACPal for cases is MESH’s turnkey palletizing system powered by the ABB IRB660 robot and backed by 26 years of MESH Automation deployment experience. This configuration is a variation of MESH’s standard MACPal palletizing cell, enhanced with automated pallet handling and an automatic pallet destacker to reduce manual pallet staging, limit forklift interaction, and support more continuous operation.
Our Fully Automated ABB Robotic Palletizer for Boxes Comes With These Standard Options Included
- Automatic pallet handling system with one stacking location and one finished goods outfeed
- One infeed conveyor pick position
- Automated 15-pallet capacity pallet dispenser
- Slip sheet magazine with a light curtain
- 16’x12’ metal skid with forklift pockets
- 48” x 40” max pallet size
- Comprehensive 1-year warranty
- Risk assessment
- Light curtain protected palletizing position
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through the removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in the warehousing industries
- Scales easily across multiple sites, creating standardized performance
ABB Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the ABB-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for closed-top boxes, cartons, and cases
- Throughput: 6 to 8 cycles/min (application dependent)
- Payload: 1 × 25 kg per cycle; optional dual-pick 2 × 25 kg
- Stack height: 108 in standard
- Available in COMPACT and STANDARD layouts
- Designed for clean IT connectivity and cybersecurity in modern plant networks
- NFPA 79 compliant controls; UL 508A certification available
- Pre-engineered, fully wired cell ships ready for installation in under a day
- Safety Features Include: Risk assessment completed on base system & light curtain protected palletizing position
Starting at
