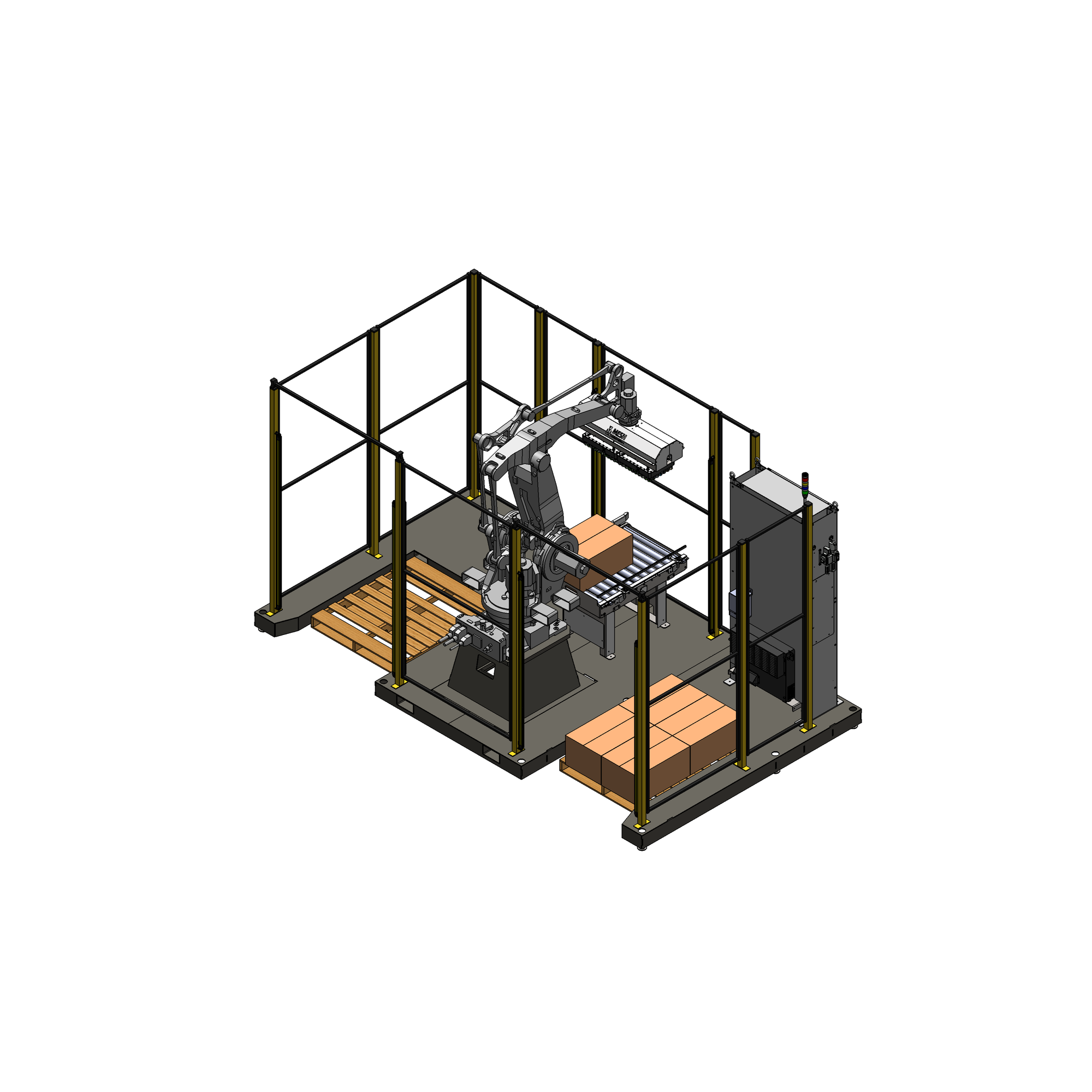

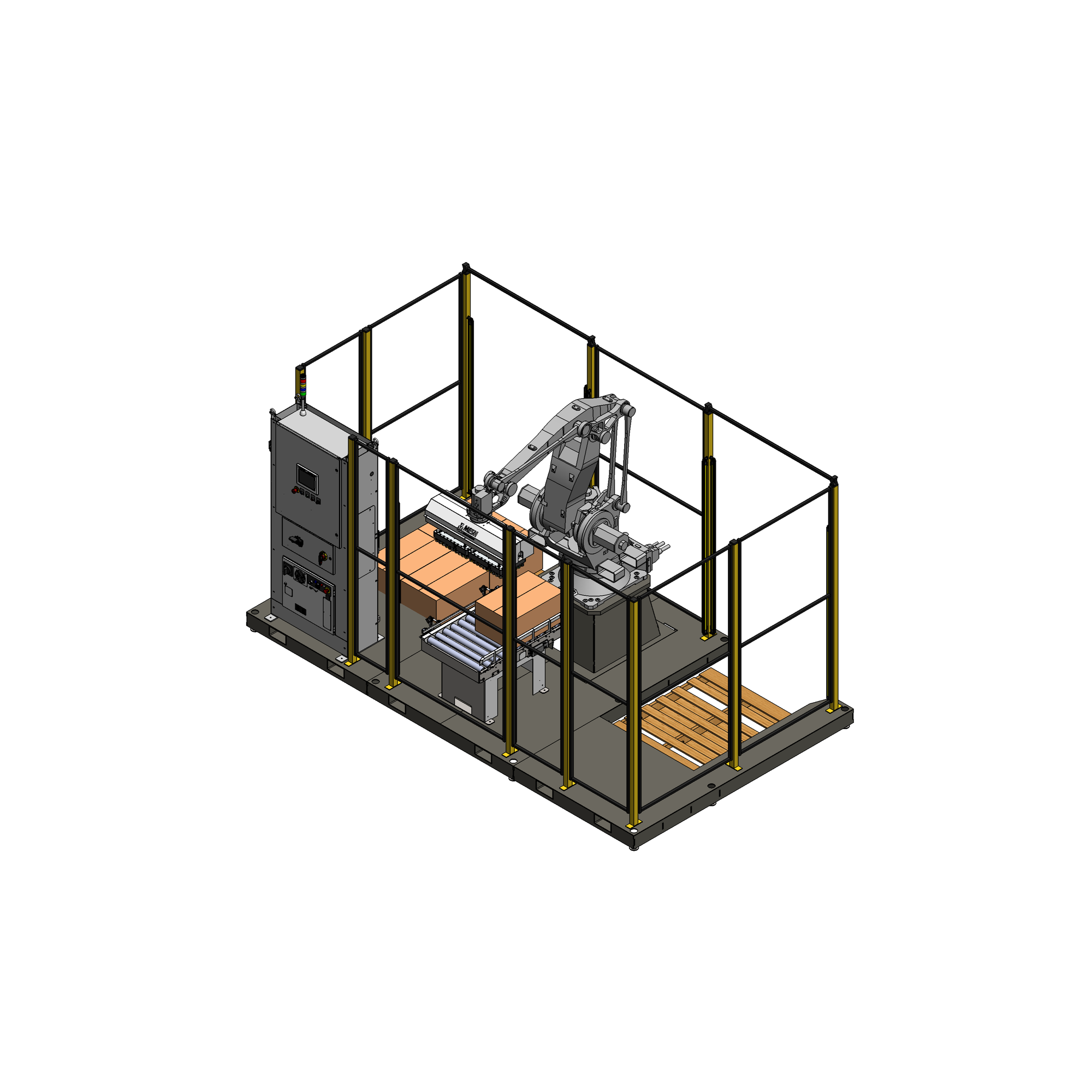

A turnkey and fully assembled palletizing solution powered by ABB’s IRB460 and IRB660 robots. MESH has distilled years of ABB palletizing into a pre-engineered system that gives you a low-risk path to high-throughput operations. It ships ready to install and is typically running in production within a day.
Our ABB Palletizer for Boxes Comes with these Standard Options Included:
- Two outbound palletizing positions
- One infeed conveyor pick position
- 48 in x 40 in max pallet size
- Shipped as a skid mounted, pre wired cell for rapid deployment
- Integrated MACControl System: Fully integrated control stack with HMI-equipped control panel and interlocked power panel (480 VAC supply).
- Comprehensive 1 year warranty
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing industries
- Scales easily across multiple sites, creating standardized performance
ABB Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the ABB-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for closed-top boxes, cartons, and cases (products that can be picked with vacuum)
- Throughput: 6 – 8 cycles/min (application dependent)
- Payload: single-pick grip: 1 x 25 kg box; optional dual-pick 2×25 kg
- Vacuum end-of-arm tooling proven across palletizing applications
- Stack height: 80″ standard; 108″ with extended reach option
- Available in COMPACT and STANDARD layouts
- Designed for clean IT connectivity and cybersecurity in modern plant networks
- NFPA 79 compliant controls; UL 508A certification available
- Pre-engineered, fully wired cell ships ready for installation in under a day
- Safety Features Include: Risk assessment completed on base system & Light curtain protected palletizing positions
| Category | Option | Price Adjustment |
|---|---|---|
| Base Cell |
STANDARD: Two Outbound Palletizing Positions One Infeed Conveyor Pick Position, 15’ X 8.5’ Metal Skid with Forktruck Pockets, 48” X 40” Max Pallet Size |
Included |
|
Compact: One Outbound Palletizing Position One Infeed Conveyor Pick Position, 10’ X 8.5’ Metal Skid with Forktruck Pockets, 48” X 40” Max Pallet Size |
-$6,000.00 | |
| Robot |
STANDARD: ABB IRB460 80” Stack Height - 110kg Payload and 2.4 M Reach |
Included |
|
ABB IRB660 108” Stack Height - 180kg Robot Payload and 3.1 M Reach |
+$8,700.00 | |
| End of Arm Tool |
STANDARD: Vacuum Style, Dual-Pick 25kg Box Payload, Box Size Max (mm) (l x w x h) = 450 x 350 x 450, Box Size Min. (mm) (l x w x h) = 200 x 150 x 80, Larger single box handling up to 25 kg Box size max (mm) (l x w x h) = 800 x 350 x 450 |
Included |
|
Vacuum Style, Single-Pick 25kg Box Payload, Box Size Max (mm) (l x w x h) = 450 x 350 x 450 |
-$5,347.00 | |
| Controls | STANDARD: Siemens PLC | Included |
| Rockwell Compact GuardLogix PLC | +$4,340.00 | |
| HMI | STANDARD: 10” Weintek Color Touchscreen | Included |
| 10” Rockwell PanelView Plus 7 | +$4,327.00 | |
| 10” Siemens SIMATIC HMI MTP1000 | +$3,734.00 | |
| Infeed Conveyor and Box Registration Device | STANDARD: 48”l x 18” Roller Face Mdr 2 Zone Conveyor w/ Twin Rod Box Pusher | Included |
| 96”l x 18” Roller Face Mdr 4 Zone Conveyor w/ Twin Rod Box Pusher | +$3,512.00 | |
| Optional Pallet and Slip Sheet Feeding Systems | Slip Sheet Magazine (36” Capacity) without Corner Lift | +$9,800.00 |
| Slip Sheet Magazine with Corner Lift Feature | +$25,777.00 | |
| Pallet Magazine (8 Pallet Capacity) with Robot Pick | +$7,700.00 | |
| Commissioning | One Week of Onsite Commissioning, Training and Production Support | +$13,750.00 |
| Service | Yearly Service Plan with < Four-Hour Response Time During Business Hours | +$4,394.00 |
| Yearly Service Plan with < Four-Hour Response Time 24/7 | +$8,589.00 | |
| Remote Support | Remote Access Hardware Device Provided by Mesh | +$1,369.00 |
| Have Mesh Use Your Existing VPN Client | +$1,700.00 | |
| Other Options | Extended Warranty, +1 Year (2 Years Total) | +$7,600.00 |
| Convenience Panel for Ethernet and 110v Power Connection Outside the Panel. | +$494.00 | |
|
Bar Code Reader pricing TBD Based on Project Details and Build) |
TBD |
