Product Description
Configuration Options

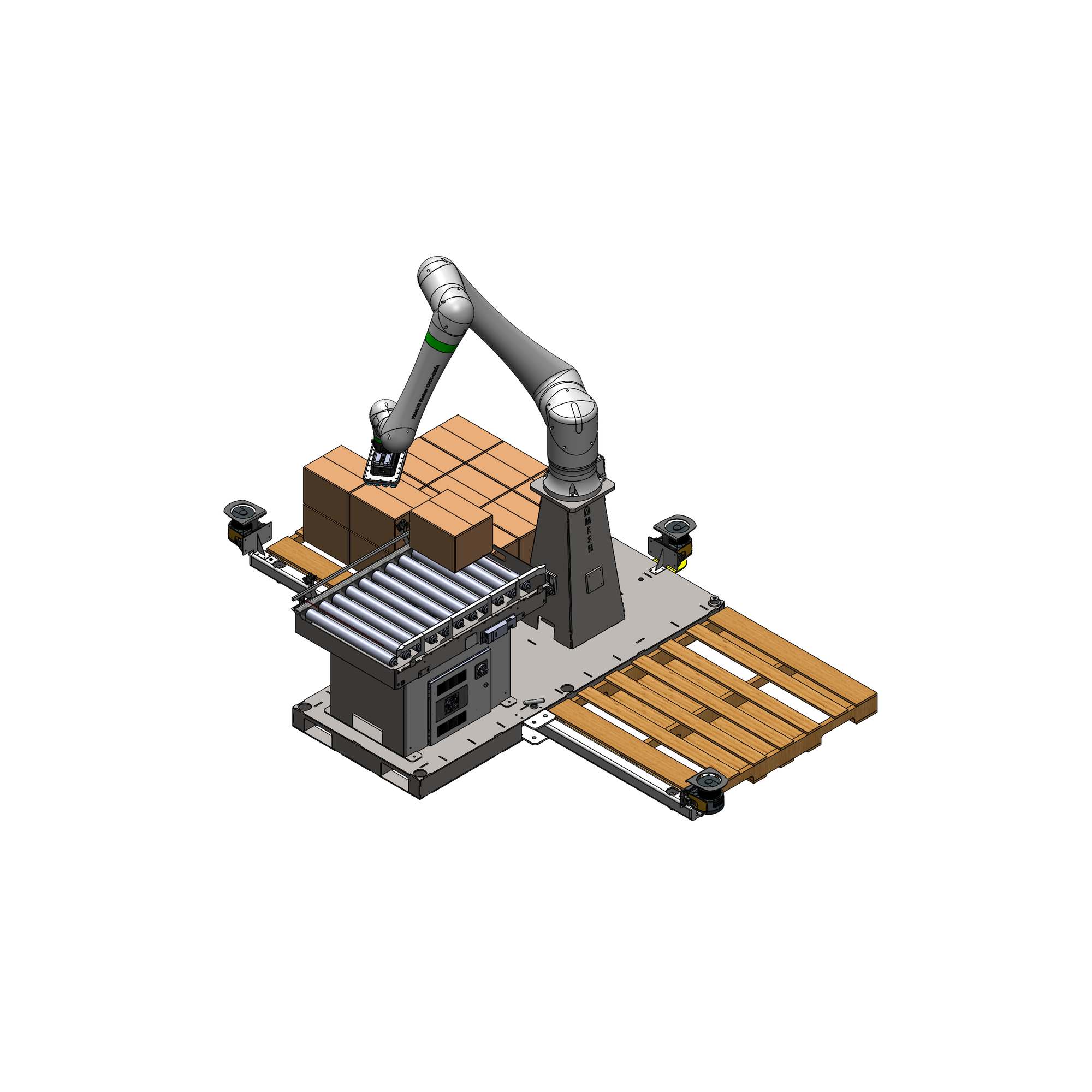

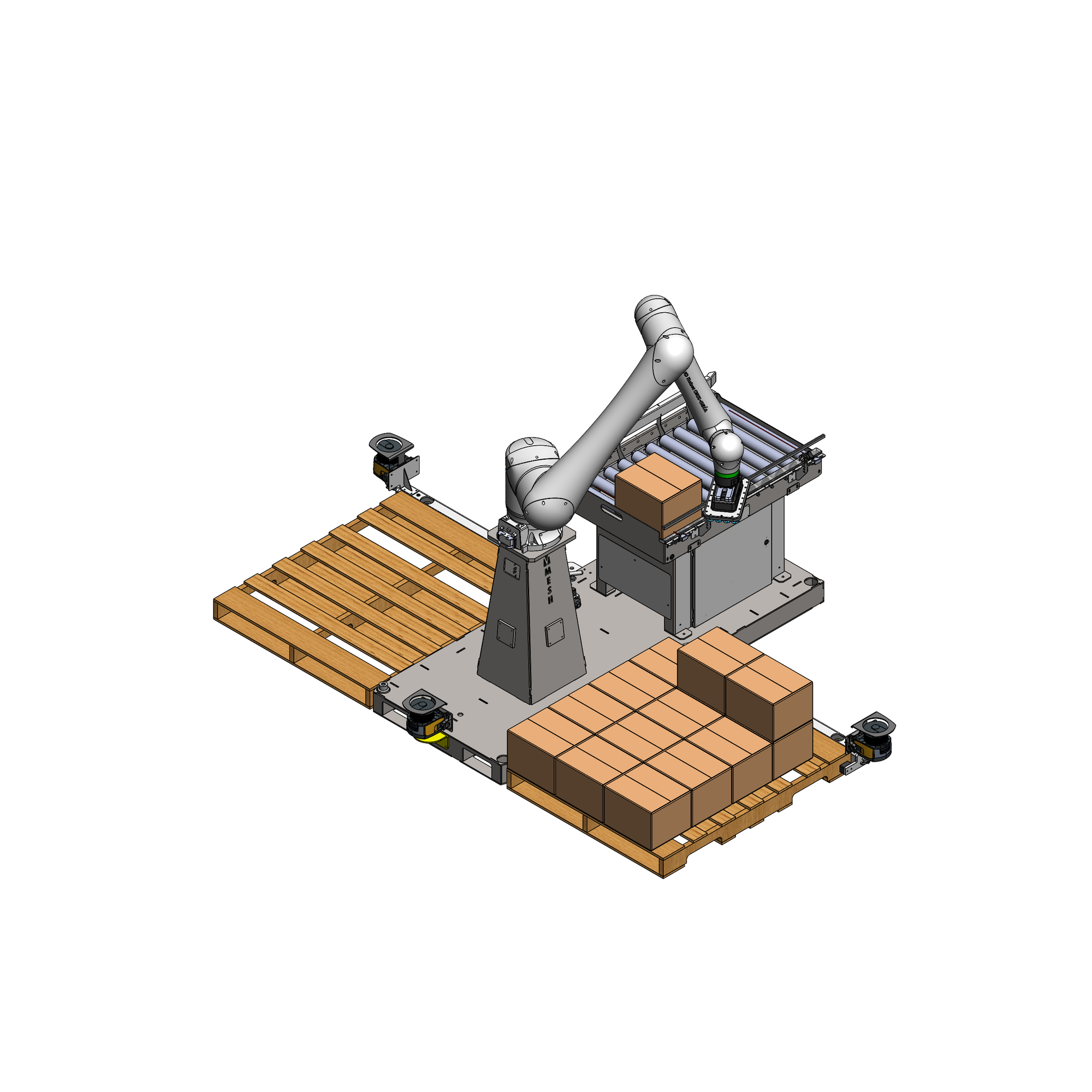

Our MACcoPAL FANUC Cobot Palletizer for Boxes turnkey solution is engineered to take on the repetitive, high-strain task of manual palletizing. Powered by FANUC’s industry-leading CRX cobot, the system combines collaborative safety with near plug-and-play deployment. Each unit ships skid-mounted for installation in less than a day and can be redeployed quickly as production needs shift. Three safety area scanners with optional light fencing define a controlled work zone.
The system is designed for closed-top, vacuum-pickable cartons, cases, and boxes and is offered with either single- or dual-pick end-of-arm tooling. PalletXBuilder software lets operators add new products and pallet patterns through a simple interface, enabling full system management without the need for advanced programming expertise.
The system comes standard with a lockable air dump and E-stop push button at the operator interface. A risk assessment is also conducted before final implementation.
Our FANUC Cobot Palletizer for Boxes Comes with these Standard Options Included:
- Two outbound palletizing positions
- One infeed conveyor pick position
- 48” x 40” max pallet size
- Fully tested at factory on two box sizes
- Shipped fully assembled and ready for operation
- Festo or SMC Compressed air prep and lockable air dump.
- Pedestal HMI stand with start, stop, reset and E-stop push buttons
- 120 Volt AC Control panel
- Comprehensive 1 year warranty
- PalletXBuilder software, MESH’s out of the box solution for GUI based pallet pattern generation. No programming expertise required.
FANUC Cobot Palletizing Solution Capabilities:
- Turnkey collaborative palletizer for boxes, cartons, and cases
- Throughput: Up to 6 cycles/minute
- Payload: 20kg single-box mode, 12.5kg per box in dual-pick mode
- Stack Height: 72” standard, >90” with lift option
- Compact skid design, requires only 120V AC power and compressed air
- NFPA 79-compliant controls platform, UL 508A certification available
| Category | Option | Price Adjustment |
|---|---|---|
| Robot |
STANDARD: FANUC CRX-30iA 72” Stack Height - 30kg payload and 1.75/1.88 m reach |
Included |
|
FANUC CRX-30iA with vertical lift >96” Stack Height |
+$7,500.00 | |
| Safety | STANDARD: Three safety area scanners | Included |
| Fence with one scanner and one light curtain | +$7,289.00 | |
| End of Arm Tool |
STANDARD: Vacuum Style, Dual-Pick Pick two boxes per operation up to 12.5 kg each - Larger single box handling up to 25 kg |
Included |
| Vacuum Style, Single Box Pick | -$5,347.00 | |
| Controls | STANDARD: Siemens PLC | Included |
| Rockwell Compact GuardLogix PLC | +$4,340.00 | |
| HMI | STANDARD: 7” Weintek Color touchscreen | Included |
| 10” Weintek Color touchscreen | +$835.00 | |
| 10” Rockwell PanelView Plus 7 | +$4,327.00 | |
| 10” Siemens SIMATIC HMI MTP1000 | +$3,734.00 | |
| Infeed Conveyor and Box Registration Device | STANDARD: 40”l x 18” roller face MDR 2 zone Conveyor w twin rod box pusher | Included |
| 96”l x 18” roller face MDR 4 zone Conveyor w twin rod box pusher | +$3,512.00 | |
| Commissioning | One Week of Onsite Commissioning, Training and Production Support | +$13,750.00 |
| Service | Yearly service plan with < four-hour response time during business hours | +$4,394.00 |
| Yearly service plan with < four-hour response time 24/7 | +$6,589.00 | |
| Remote Support | Remote access hardware device provided by MESH | +$1,369.00 |
| Have MESH use your existing VPN client | +$1,700.00 | |
| Other Options | Extended Warranty, +1 year (2 years total) | +$7,250.00 |
| Convenience panel for ethernet and 110v power connection outside the panel. | +$494.00 | |
|
Bar code reader Pricing TBD based on project details and build |
TBD |
FANUC Cobot Palletizer for Boxes, Turnkey
Product Description
Our MACcoPAL FANUC Cobot Palletizer for Boxes turnkey solution is engineered to take on the repetitive, high-strain task of manual palletizing. Powered by FANUC’s industry-leading CRX cobot, the system combines collaborative safety with near plug-and-play deployment. Each unit ships skid-mounted for installation in less than a day and can be redeployed quickly as production needs shift. Three safety area scanners with optional light fencing define a controlled work zone.
The system is designed for closed-top, vacuum-pickable cartons, cases, and boxes and is offered with either single- or dual-pick end-of-arm tooling. PalletXBuilder software lets operators add new products and pallet patterns through a simple interface, enabling full system management without the need for advanced programming expertise.
The system comes standard with a lockable air dump and E-stop push button at the operator interface. A risk assessment is also conducted before final implementation.
Our FANUC Cobot Palletizer for Boxes Comes with these Standard Options Included:
- Two outbound palletizing positions
- One infeed conveyor pick position
- 48” x 40” max pallet size
- Fully tested at factory on two box sizes
- Shipped fully assembled and ready for operation
- Festo or SMC Compressed air prep and lockable air dump.
- Pedestal HMI stand with start, stop, reset and E-stop push buttons
- 120 Volt AC Control panel
- Comprehensive 1 year warranty
- PalletXBuilder software, MESH’s out of the box solution for GUI based pallet pattern generation. No programming expertise required.
FANUC Cobot Palletizing Solution Capabilities:
- Turnkey collaborative palletizer for boxes, cartons, and cases
- Throughput: Up to 6 cycles/minute
- Payload: 20kg single-box mode, 12.5kg per box in dual-pick mode
- Stack Height: 72” standard, >90” with lift option
- Compact skid design, requires only 120V AC power and compressed air
- NFPA 79-compliant controls platform, UL 508A certification available
Starting at
