Product Description
Built on FANUC’s proven M-410iC palletizing platform, the FANUC Robotic Palletizer for Bags system automates the heavy, repetitive task of stacking flexible bagged products such as grain, fertilizer, pet food, and chemicals. It’s purpose-built to solve the real problems of bag palletizing like shifting contents, changing dimensions, and the constant demand for stable, uniform stacks.
A claw-style gripper supports each bag from underneath during pick and place, managing payloads up to 25 kg while maintaining control of partially filled or soft-sided bags. Where product conditioning or flattening is required, MESH can specify and integrate the right solution to improve layer quality and overall stack consistency.
MACPal achieves throughputs of up to 22 bags per minute, with actual rate dependent on bag type, fill consistency, and pallet pattern. The STANDARD configuration supports two pallet stations, while a COMPACT layout provides a single pallet position for tighter floors.
Every system ships as a skid-mounted, pre-wired cell for rapid deployment. MESH’s control platform is built to NFPA 79 standards and can be certified to UL 508A when required. Each system includes purpose-built end-of-arm tooling optimized for bag handling. IT and cybersecurity readiness are part of every design, ensuring the solution integrates cleanly into modern plant networks without adding risk.
Our FANUC Palletizer for Bags Comes with these Standard Options Included:
- Two outbound palletizing positions
- One infeed conveyor pick position
- 48 in x 40 in max pallet size
- Shipped as a skid mounted, pre wired cell for rapid deployment
- Festo or SMC compressed air prep and lockable air dump
- Pedestal HMI stand with start, stop, reset and E-stop push buttons
- 120 volt AC control panel
- Comprehensive 1 year warranty
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing-based industries
- Scales easily across multiple sites, creating standardized performance
FANUC Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the FANUC-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for bags, sacks, and flexible packaging found in feed, seed, fertilizer, chemical, aggregate, soil, mulch, stone, gravel, and pet food operations
- Throughput: up to 22 bags/min (application dependent)
- Payload: 1×25 kg per cycle; optional dual-pick 2×25 kg
- Stack height: 75″ standard; 108″ with extended reach option
- Available in COMPACT and STANDARD layouts
- NFPA 79 compliant controls; UL 508A certification available
- Pre-engineered, fully wired cell ships ready for installation in under a day
- Safety Features Include: Risk assessment completed on base system & Light curtain protected palletizing positions

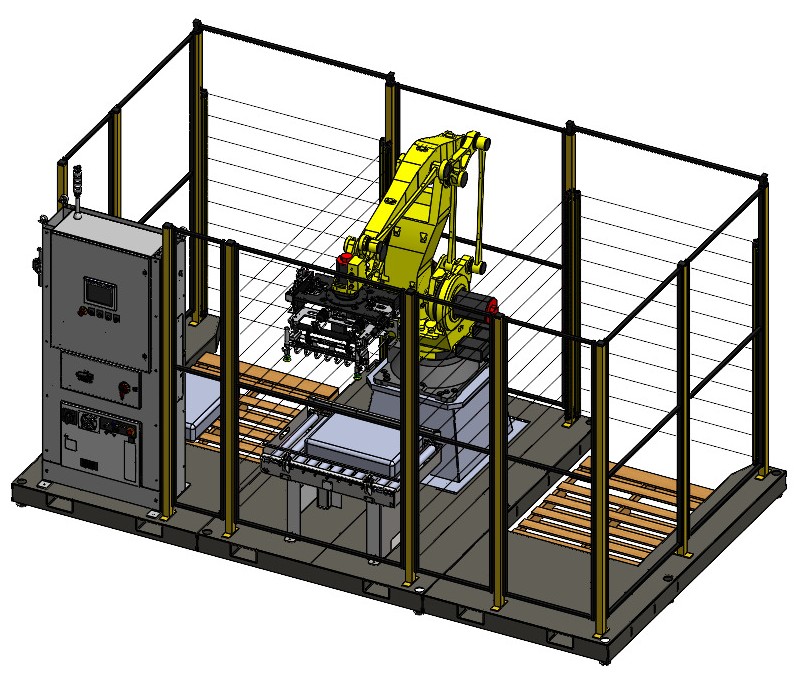

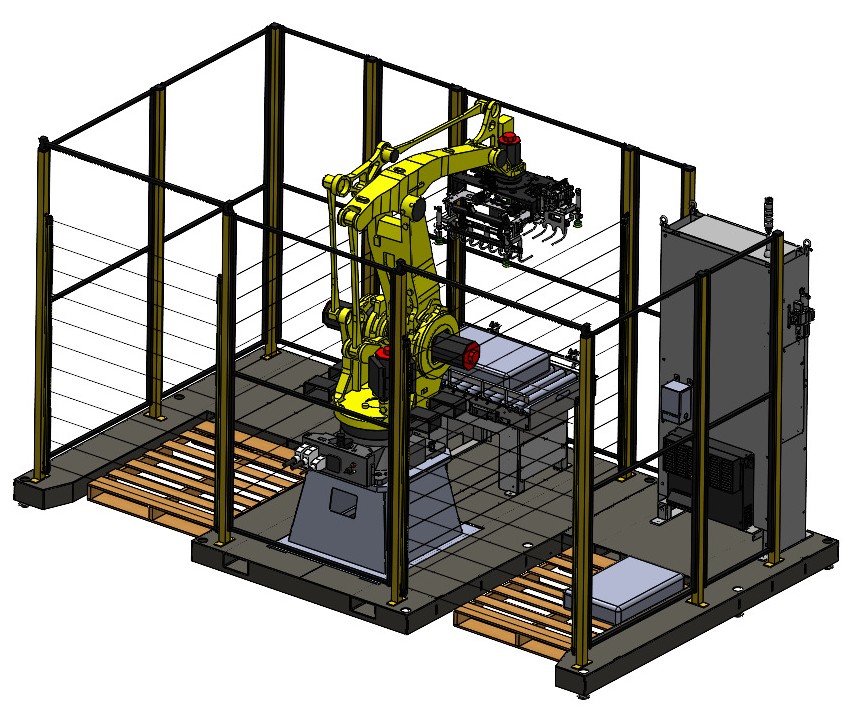

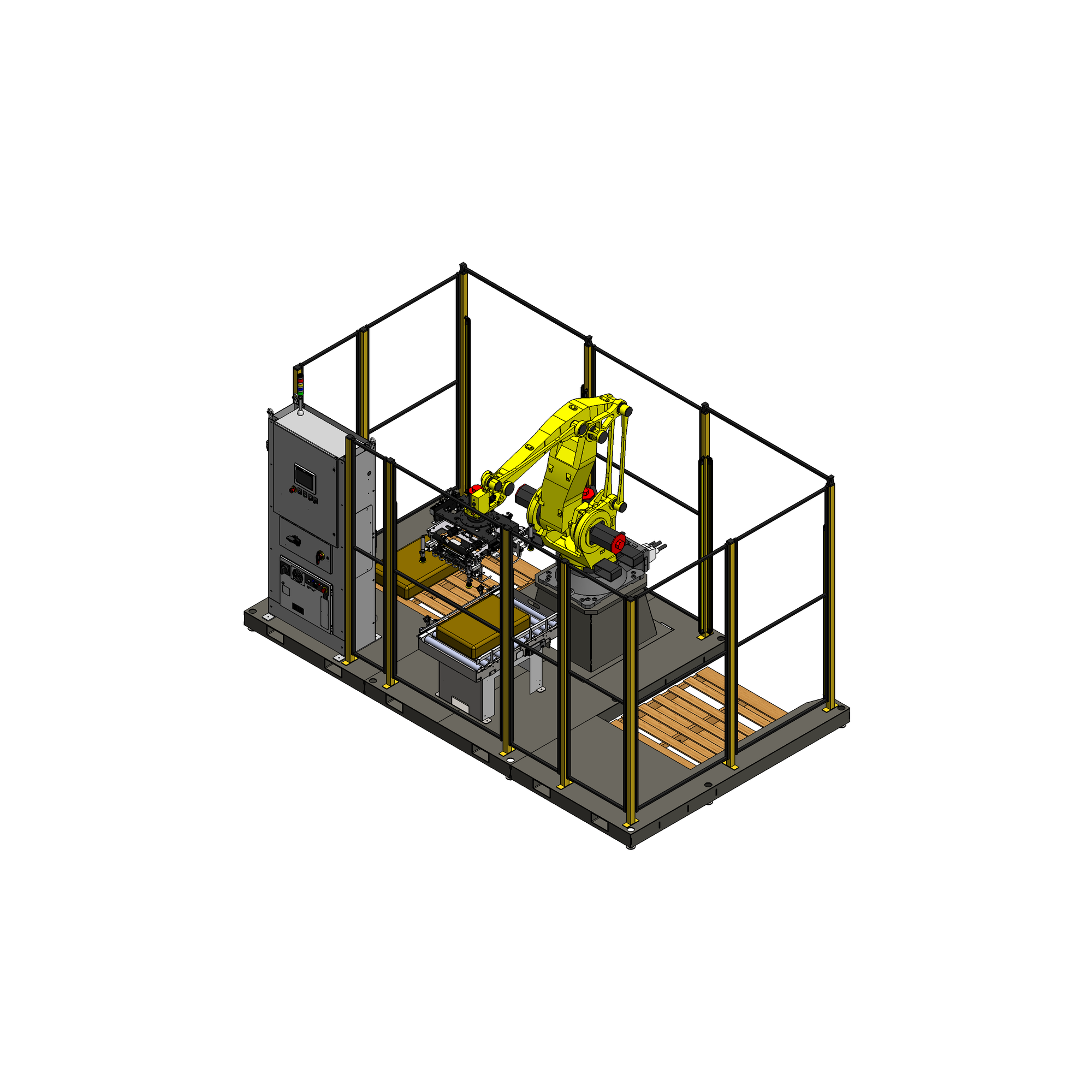

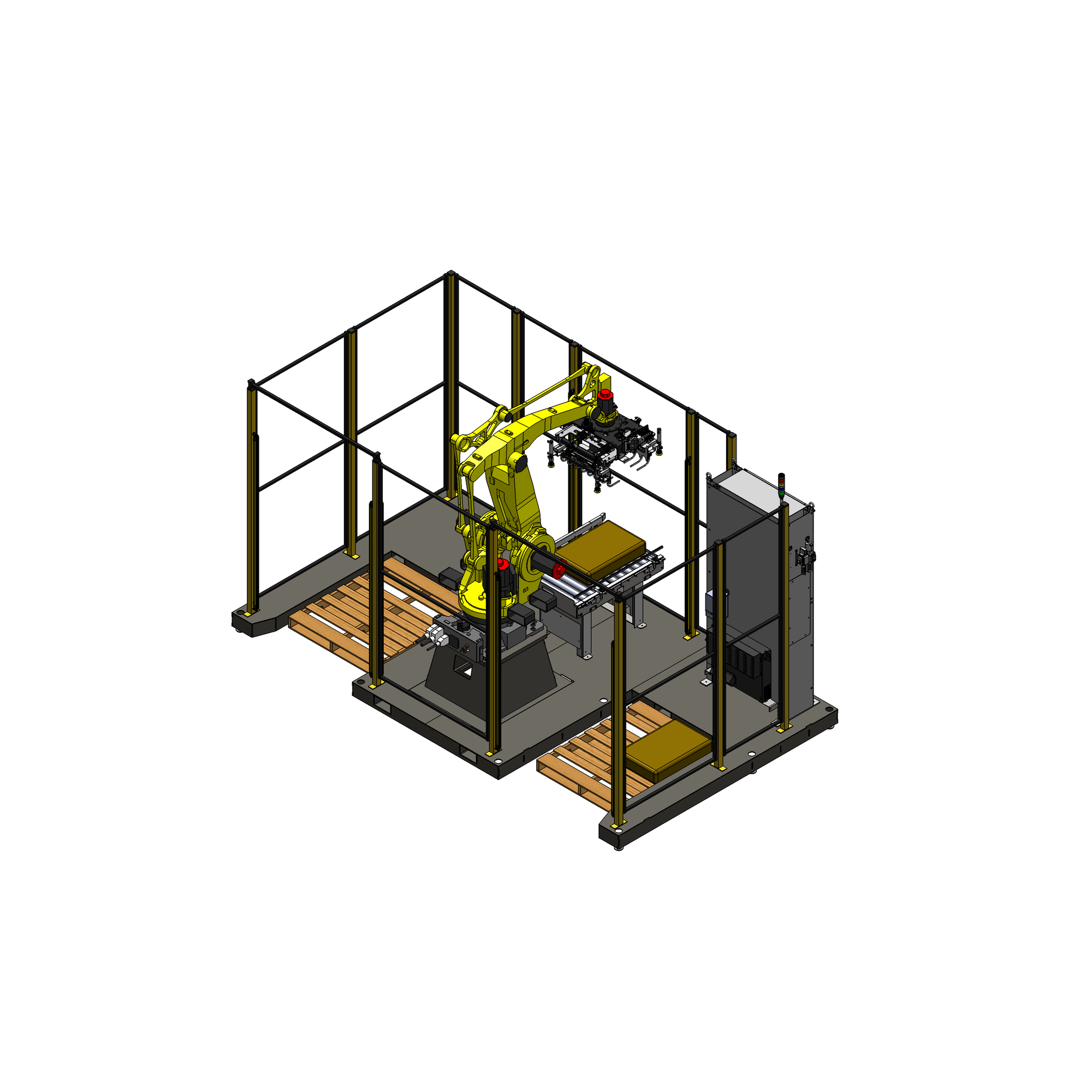

FANUC Robotic Palletizer for Bags, Fully Assembled
Product Description
Built on FANUC’s proven M-410iC palletizing platform, the FANUC Robotic Palletizer for Bags system automates the heavy, repetitive task of stacking flexible bagged products such as grain, fertilizer, pet food, and chemicals. It’s purpose-built to solve the real problems of bag palletizing like shifting contents, changing dimensions, and the constant demand for stable, uniform stacks.
A claw-style gripper supports each bag from underneath during pick and place, managing payloads up to 25 kg while maintaining control of partially filled or soft-sided bags. Where product conditioning or flattening is required, MESH can specify and integrate the right solution to improve layer quality and overall stack consistency.
MACPal achieves throughputs of up to 22 bags per minute, with actual rate dependent on bag type, fill consistency, and pallet pattern. The STANDARD configuration supports two pallet stations, while a COMPACT layout provides a single pallet position for tighter floors.
Every system ships as a skid-mounted, pre-wired cell for rapid deployment. MESH’s control platform is built to NFPA 79 standards and can be certified to UL 508A when required. Each system includes purpose-built end-of-arm tooling optimized for bag handling. IT and cybersecurity readiness are part of every design, ensuring the solution integrates cleanly into modern plant networks without adding risk.
Our FANUC Palletizer for Bags Comes with these Standard Options Included:
- Two outbound palletizing positions
- One infeed conveyor pick position
- 48 in x 40 in max pallet size
- Shipped as a skid mounted, pre wired cell for rapid deployment
- Festo or SMC compressed air prep and lockable air dump
- Pedestal HMI stand with start, stop, reset and E-stop push buttons
- 120 volt AC control panel
- Comprehensive 1 year warranty
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing-based industries
- Scales easily across multiple sites, creating standardized performance
FANUC Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the FANUC-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for bags, sacks, and flexible packaging found in feed, seed, fertilizer, chemical, aggregate, soil, mulch, stone, gravel, and pet food operations
- Throughput: up to 22 bags/min (application dependent)
- Payload: 1×25 kg per cycle; optional dual-pick 2×25 kg
- Stack height: 75″ standard; 108″ with extended reach option
- Available in COMPACT and STANDARD layouts
- NFPA 79 compliant controls; UL 508A certification available
- Pre-engineered, fully wired cell ships ready for installation in under a day
- Safety Features Include: Risk assessment completed on base system & Light curtain protected palletizing positions
