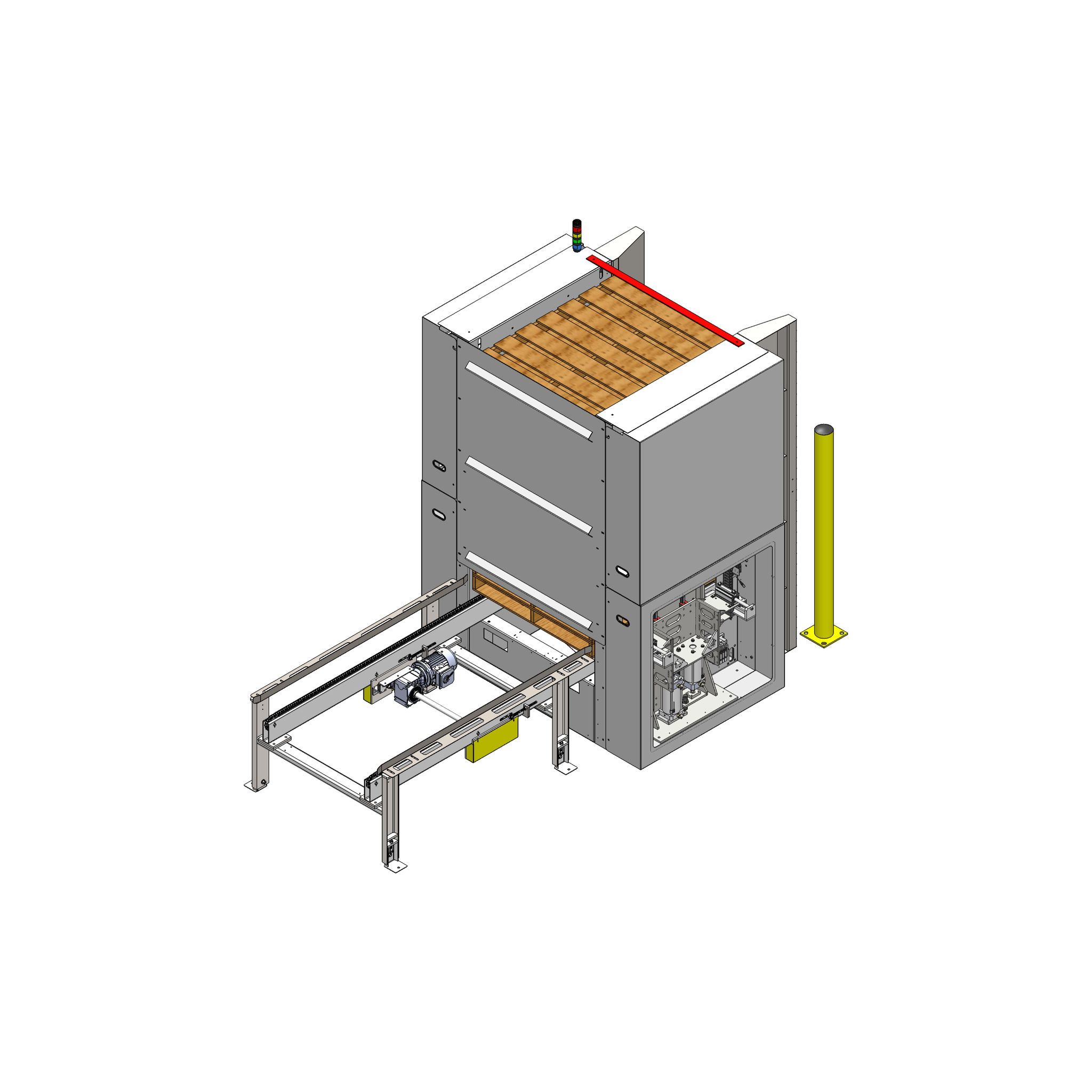

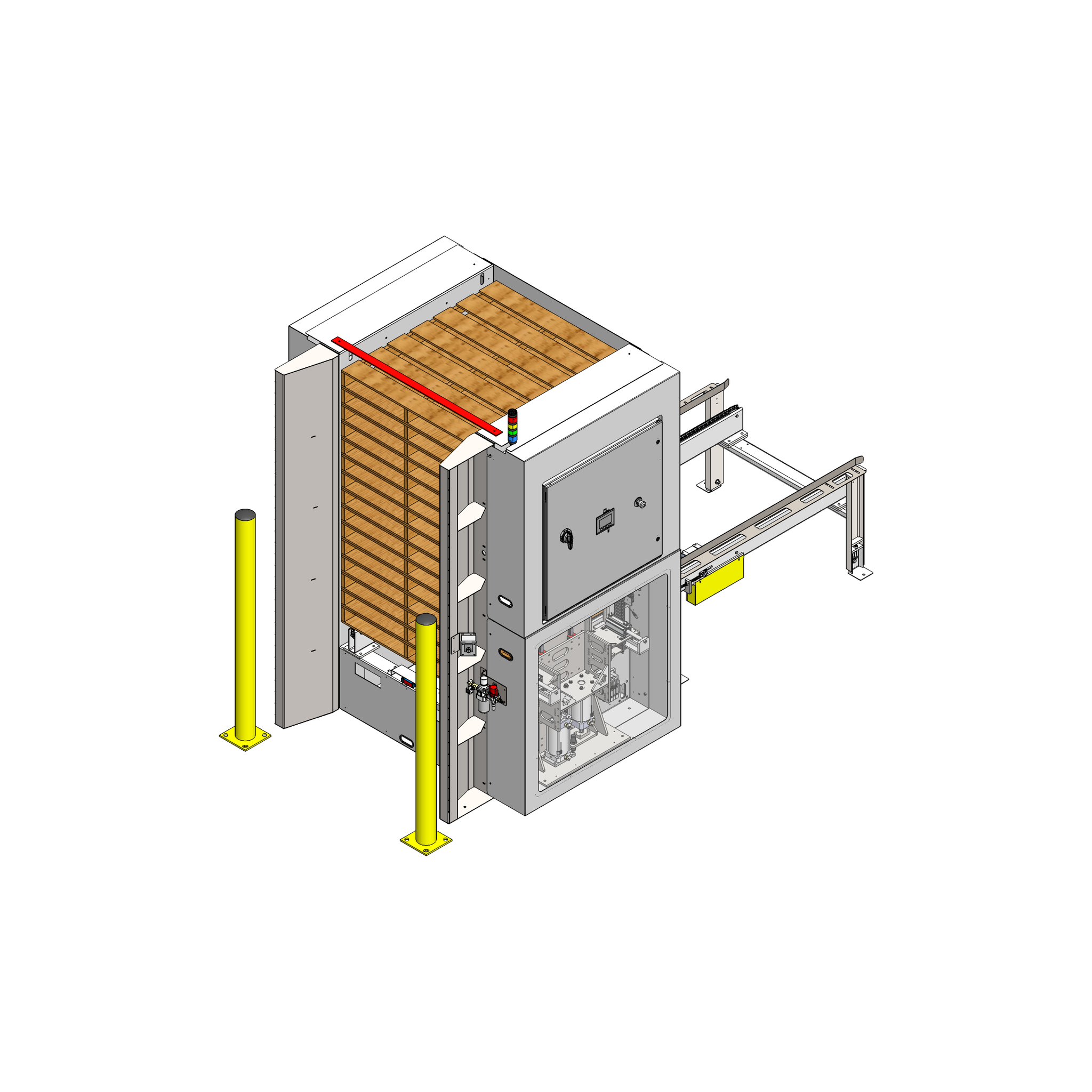

The MESH Pallet Stacker & Destacker is a heavy-duty, dual-purpose system that automates both pallet stack formation and single-pallet dispensing. Designed for 24/7 manufacturing environments, it eliminates manual lifting, stabilizes pallet flow, and keeps downstream equipment continuously supplied.
Built with reinforced structural frames, high-reliability lift mechanisms, and modular controls, this system integrates seamlessly with conveyors, palletizers, depalletizers, and AMRs/AGVs. Configure it for your application, add it to your cart, and our team will follow up to finalize layout, integration details, and lead time.
Our MACPAL Pallet Stacker Destacker Comes With These Standard Options Included
- Stack and destack functionality in one automated system
- Integrated internal pallet conveyor
- 480 VAC industrial control panel
- Allen-Bradley PLC controls
- Stack light included
- Factory tested prior to shipment
- Shipped modular for simplified installation
- Accommodates conveyor heights from 13 in to 27 in
- Festo or SMC compressed air prep with lockable air dump
- Comprehensive 1-year warranty
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing industries
- Scales easily across multiple sites, creating standardized performance
MACPAL Pallet Stacker Destacker Solution Capabilities:
Engineered to meet the needs of high-volume warehouse and manufacturing operations, the MACPAL Pallet Stacker Destacker delivers predictable pallet flow with a footprint small enough to integrate into existing conveyor systems.
- Purpose-built automated pallet stacker and pallet dispenser
- Throughput: Up to 5 pallets per minute
- Stack Height: Up to 15 pallets
- Maximum Pallet Size: 48 in × 48 in
- Handles wood, plastic, CHEP, PECO, nested, and custom pallets
- Available with Allen-Bradley PLC or Siemens PLC controls
- Designed for continuous 24/7 industrial operation
- NFPA 79 compliant controls platform; UL 508A certification available
- Safety features include OSHA-compliant guarding with interlocked access
| Category | Option | Price Adjustment |
|---|---|---|
| Controls | Allen-Bradley PLC | Included |
| Siemens PLC | Included | |
| Stack Light | Included | |
| HMI | STANDARD: 7" WVA LCD, 1024 X 600, Capacitive Touch | Included |
| 10” Rockwell PanelView Plus 7 | +$4,327.00 | |
| 10” Siemens SIMATIC HMI MTP1000 | +$3,734.00 | |
| Infeed Conveyor | STANDARD: 60”l x 34” two-strand chain conveyor | Included |
| Outfeed Conveyor (select one) | 70”l x 34” two-strand chain conveyor | +$6,615.00 |
| Commissioning | One Week of Onsite Commissioning, Training and Production Support | +$13,750.00 |
| Service | Yearly service plan with < four-hour response time during business hours | +$4,394.00 |
| Yearly service plan with < four-hour response time 24/7 | +$6,589.00 | |
| Remote Support | Remote access hardware device provided by MESH | +$1,369.00 |
| Have MESH use your existing VPN client | +$1,700.00 | |
| Other Options | Extended Warranty, +1 year (2 years total) | +$7,250.00 |
