Product Description

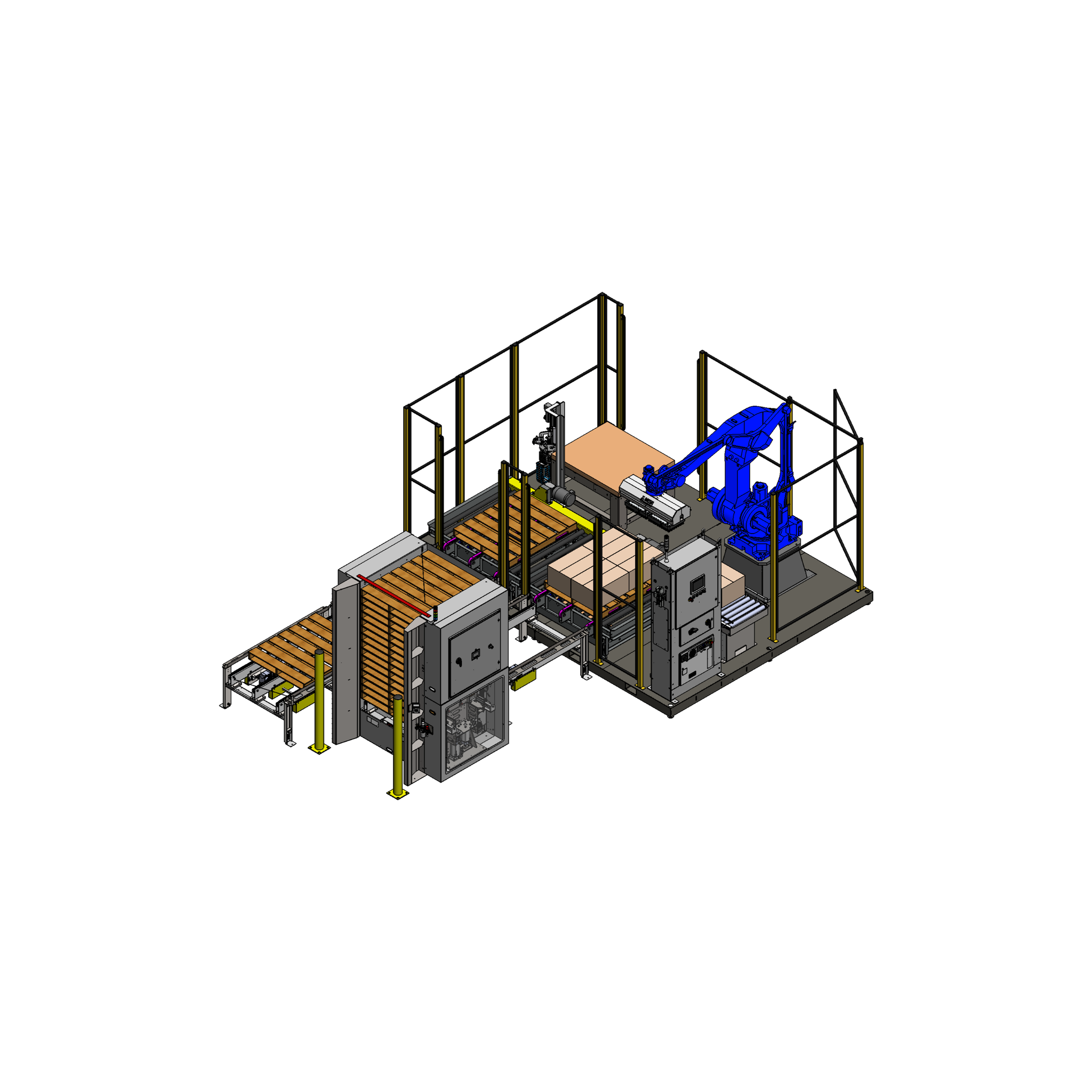

MACPal for cases is MESH’s turnkey palletizing system built around a Yaskawa industrial palletizing robot and backed by 26 years of MESH Automation deployment experience. This configuration is a variation of MESH’s standard MACPal palletizing cell, enhanced with automated pallet handling and an automatic pallet destacker to reduce manual pallet staging, limit forklift interaction, and support more continuous operation.
Our Fully Automated YASKAWA for Boxes Comes With These Standard Options Included
- Automatic pallet handling system with one stacking location and one finished goods outfeed
- One infeed conveyor pick position
- Automated 15 pallet capacity Pallet dispenser
- Slip sheet magazine with corner lift and light curtain
- 16’x12’ metal skid with forktruck pockets
- 48” x 40” max pallet size
- Comprehensive 1-year warranty
- Risk assessment
- Light curtain protected palletizing position
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing industries
- Scales easily across multiple sites, creating standardized performance
YASKAWA Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the YASKAWA-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for closed-top boxes, cartons, and cases
- Throughput: 6 to 8 cycles/min (application dependent)
- Payload: 1 × 25 kg per cycle; optional dual-pick 2 × 25 kg
- Stack height: 108 in standard
- Available in COMPACT and STANDARD layouts
- Designed for clean IT connectivity and cybersecurity in modern plant networks
- NFPA 79 compliant controls; UL 508A certification available
- Pre-engineered, fully wired cell ships ready for installation in under a day
- Safety Features Include: Risk assessment completed on base system & light curtain protected palletizing position
