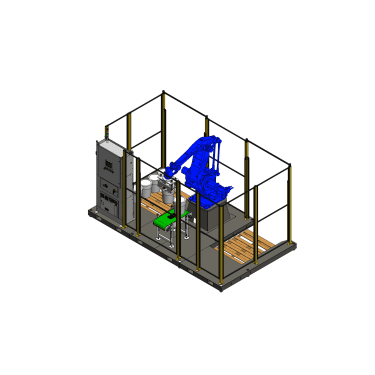

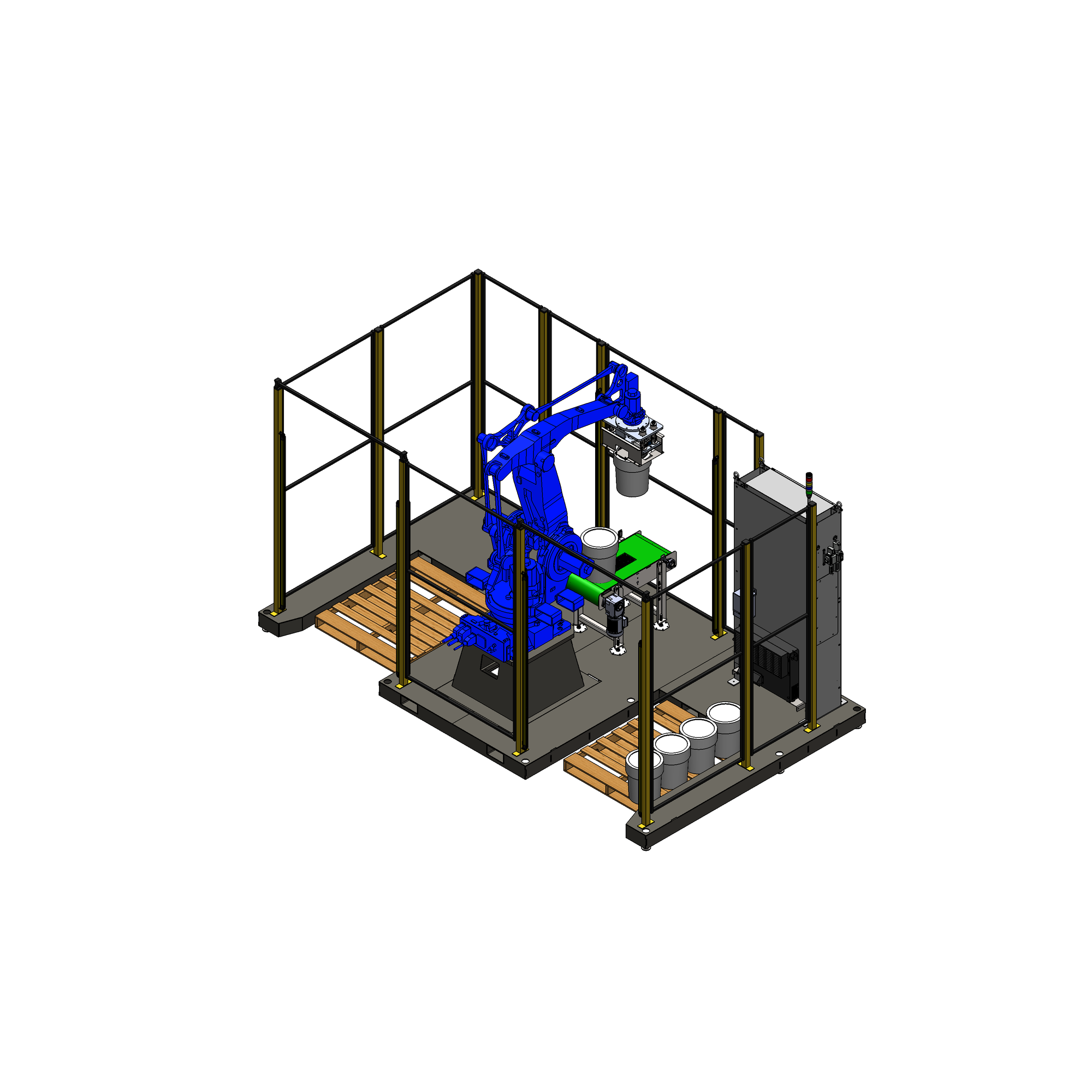

A turnkey and fully assembled palletizing solution powered by Yaskawa PL-series robots. Palletizing round plastic pails requires precise placement and controlled handling to prevent lid damage and stack instability.
This Yaskawa robotic palletizer is optimized for repetitive pail palletizing applications where motion efficiency and placement accuracy are critical. The fully integrated system uses vacuum-based tooling designed for cylindrical containers to ensure consistent pallet geometry and reliable stacking.
Our YASKAWA Palletizer for Pails Comes with these Standard Options Included:
- Two outbound palletizing positions (Standard Layout)
- One infeed conveyor pick position
- 48 in x 40 in max pallet size
- Shipped as a skid mounted, pre-wired cell for rapid deployment (15’ x 8.5’ footprint)
- Integrated MACControl System: Fully integrated control stack with HMI-equipped control panel and interlocked power panel (480 VAC supply)
- Comprehensive 1 year warranty
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing industries
- Scales easily across multiple sites, creating standardized performance
YASKAWA Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the Yaskawa-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for Pails and Buckets
- Throughput: 5 – 6 cycles/min (depending on pallet pattern and pail configuration)
- Payload: Vacuum Style, Single-Pick (30kg) or Dual-Pick (30kg per pail)
- Vacuum end-of-arm tooling engineered for cylindrical containers to maintain lid integrity
- Stack height: 80″ standard (PL80); 108″ with extended reach option (PL190)
- Available in COMPACT (10′ x 8.5′) and STANDARD (15′ x 8.5′) layouts
- Designed for clean IT connectivity and cybersecurity in modern plant networks
- NFPA 79 compliant controls; UL 508A certification available
- Base Controls: Siemens PLC with 10″ Weintek Color Touchscreen
- Safety Features Include: Risk assessment completed on base system & Light curtain protected palletizing positions
| Category | Option | Price Adjustment |
|---|---|---|
| Base Cell |
STANDARD: Two Outbound Palletizing Positions One Infeed Conveyor Pick Position, 15’ X 8.5’ Metal Skid with Forktruck Pockets, 48” X 40” Max Pallet Size |
Included |
|
Compact: One Outbound Palletizing Position One Infeed Conveyor Pick Position, 10’ X 8.5’ Metal Skid with Forktruck Pockets, 48” X 40” Max Pallet Size |
-$6,000.00 | |
| Robot |
YASKAWA PL80 80” Stack Height - 80kg Payload and 2.06 M Reach |
Included |
|
YASKAWA PL190 108” Stack Height - 190kg Payload and 3.15 M Reach |
+$8,700.00 | |
| End of Arm Tool |
STANDARD: Vacuum Style, Dual-Pick 30kg per pail payload |
Included |
|
Vacuum Style, Single-Pick 30kg pail payload |
+$5,347.00 | |
| Controls | STANDARD: Siemens PLC | Included |
| Rockwell Compact GuardLogix PLC | +$4,340.00 | |
| HMI | STANDARD: 10” Weintek Color Touchscreen | Included |
| 10” Rockwell PanelView Plus 7 | +$4,327.00 | |
| 10” Siemens SIMATIC HMI MTP1000 | +$3,734.00 | |
| Infeed Conveyor and Box Registration Device | STANDARD: 48”l x 18” Roller Face Mdr 2 Zone Conveyor w/ Twin Rod Box Pusher | Included |
| 96”l x 18” Roller Face Mdr 4 Zone Conveyor w/ Twin Rod Box Pusher | +$3,512.00 | |
| Optional Pallet and Slip Sheet Feeding Systems | Slip Sheet Magazine (36” Capacity) without Corner Lift | +$9,800.00 |
| Slip Sheet Magazine with Corner Lift Feature | +$25,777.00 | |
| Pallet Magazine (8 Pallet Capacity) with Robot Pick | +$7,700.00 | |
| Commissioning | One Week of Onsite Commissioning, Training and Production Support | +$13,750.00 |
| Service | Yearly Service Plan with < Four-Hour Response Time During Business Hours | +$4,394.00 |
| Yearly Service Plan with < Four-Hour Response Time 24/7 | +$8,589.00 | |
| Remote Support | Remote Access Hardware Device Provided by Mesh | +$1,369.00 |
| Have Mesh Use Your Existing VPN Client | +$1,700.00 | |
| Other Options | Extended Warranty, +1 Year (2 Years Total) | +$7,600.00 |
| Convenience Panel for Ethernet and 110v Power Connection Outside the Panel. | +$494.00 | |
|
Bar Code Reader pricing TBD Based on Project Details and Build |
TBD |
YASKAWA Robotic Palletizer for Pails, Fully Assembled
Product Description
A turnkey and fully assembled palletizing solution powered by Yaskawa PL-series robots. Palletizing round plastic pails requires precise placement and controlled handling to prevent lid damage and stack instability.
This Yaskawa robotic palletizer is optimized for repetitive pail palletizing applications where motion efficiency and placement accuracy are critical. The fully integrated system uses vacuum-based tooling designed for cylindrical containers to ensure consistent pallet geometry and reliable stacking.
Our YASKAWA Palletizer for Pails Comes with these Standard Options Included:
- Two outbound palletizing positions (Standard Layout)
- One infeed conveyor pick position
- 48 in x 40 in max pallet size
- Shipped as a skid mounted, pre-wired cell for rapid deployment (15’ x 8.5’ footprint)
- Integrated MACControl System: Fully integrated control stack with HMI-equipped control panel and interlocked power panel (480 VAC supply)
- Comprehensive 1 year warranty
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing industries
- Scales easily across multiple sites, creating standardized performance
YASKAWA Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the Yaskawa-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for Pails and Buckets
- Throughput: 5 – 6 cycles/min (depending on pallet pattern and pail configuration)
- Payload: Vacuum Style, Single-Pick (30kg) or Dual-Pick (30kg per pail)
- Vacuum end-of-arm tooling engineered for cylindrical containers to maintain lid integrity
- Stack height: 80″ standard (PL80); 108″ with extended reach option (PL190)
- Available in COMPACT (10′ x 8.5′) and STANDARD (15′ x 8.5′) layouts
- Designed for clean IT connectivity and cybersecurity in modern plant networks
- NFPA 79 compliant controls; UL 508A certification available
- Base Controls: Siemens PLC with 10″ Weintek Color Touchscreen
- Safety Features Include: Risk assessment completed on base system & Light curtain protected palletizing positions
