Product Description
Configuration Options
MESH’s Yaskawa robotic palletizer is a fully integrated palletizing system powered by PL-series robots. It is optimized for repetitive tote palletizing applications where motion efficiency, compact layouts, and repeatable stacking are required.
The system uses a mechanical gripping tool engineered for rigid plastic totes. Pre-engineered system layouts and standardized controls deliver a consistent and scalable solution for automating tote palletizing while maintaining predictable performance and straightforward integration.
Our YASKAWA Palletizer for Totes Comes with these Standard Options Included:
- Two outbound palletizing positions (Standard Layout)
- One infeed conveyor pick position
- 48 in x 40 in max pallet size
- Shipped as a skid mounted, pre-wired cell for rapid deployment (15’ x 8.5’ footprint)
- Integrated MACControl System: Fully integrated control stack with HMI-equipped control panel and interlocked power panel (480 VAC supply)
- Comprehensive 1 year warranty
- PalletXBuilder pallet pattern software included
Why Companies Choose MACPAL
- Workforce stability through removal of a turnover-heavy task
- Predictable throughput across shifts and facilities
- Fixed cost structure compared to variable labor expense
- Faster ROI with installation-to-production in under a day
- Proven in warehousing industries
- Scales easily across multiple sites, creating standardized performance
YASKAWA Palletizing Robot Solution Capabilities:
Engineered to meet the needs of high-volume warehouse operations, the Yaskawa-based MACPAL delivers predictable performance with a footprint small enough to fit nearly anywhere.
- Purpose-built robotic palletizer for rigid plastic totes
- Throughput: 5 – 6 cycles/min (depending on stack pattern and tote configuration)
- Payload: Dual-pick mechanical gripper handling two 30 kg totes per cycle
- Fork Style end-of-arm tooling with top clamp proven for stable tote handling
- Stack height: 80″ standard (PL80 robot); 108″ with extended reach option (PL190 robot)
- Available in COMPACT (10′ x 8.5′) and STANDARD (15′ x 8.5′) layouts
- Designed for clean IT connectivity and cybersecurity in modern plant networks
- NFPA 79 compliant controls; UL 508A certification available
- Pre-engineered, fully wired cell ships ready for installation in under a day
- Safety Features Include: Risk assessment completed on base system & Light curtain protected palletizing positions
| Category | Option | Price Adjustment |
|---|---|---|
| Base Cell |
STANDARD: Two Outbound Palletizing Positions One Infeed Conveyor Pick Position, 15’ X 8.5’ Metal Skid with Forktruck Pockets, 48” X 40” Max Pallet Size |
Included |
|
Compact: One Outbound Palletizing Position One Infeed Conveyor Pick Position, 10’ X 8.5’ Metal Skid with Forktruck Pockets, 48” X 40” Max Pallet Size |
-$6,000.00 | |
| Robot |
YASKAWA PL80 80” Stack Height - 80kg Payload and 2.06 M Reach |
Included |
|
YASKAWA PL190 108” Stack Height - 190kg Payload and 3.15 M Reach |
+$8,700.00 | |
| End of Arm Tool |
STANDARD: Fork Style w/ Top Clamp, Dual-Pick 30kg per tote payload |
Included |
| Controls | STANDARD: Siemens PLC | Included |
| Rockwell Compact GuardLogix PLC | +$4,340.00 | |
| HMI | STANDARD: 10” Weintek Color Touchscreen | Included |
| 10” Rockwell PanelView Plus 7 | +$4,327.00 | |
| 10” Siemens SIMATIC HMI MTP1000 | +$3,734.00 | |
| Infeed Conveyor and Box Registration Device | STANDARD: 48”l x 18” Roller Face Mdr 2 Zone Conveyor w/ Twin Rod Box Pusher | Included |
| 96”l x 18” Roller Face Mdr 4 Zone Conveyor w/ Twin Rod Box Pusher | +$3,512.00 | |
| Optional Pallet and Slip Sheet Feeding Systems | Slip Sheet Magazine (36” Capacity) without Corner Lift | +$9,800.00 |
| Slip Sheet Magazine with Corner Lift Feature | +$25,777.00 | |
| Pallet Magazine (8 Pallet Capacity) with Robot Pick | +$7,700.00 | |
| Commissioning | One Week of Onsite Commissioning, Training and Production Support | +$13,750.00 |
| Service | Yearly Service Plan with < Four-Hour Response Time During Business Hours | +$4,394.00 |
| Yearly Service Plan with < Four-Hour Response Time 24/7 | +$8,589.00 | |
| Remote Support | Extended Warranty, +1 Year (2 Years Total) | +$7,600.00 |
| Convenience Panel for Ethernet and 110v Power Connection Outside the Panel. | +$494.00 | |
|
Bar Code Reader pricing TBD Based on Project Details and Build |
TBD |

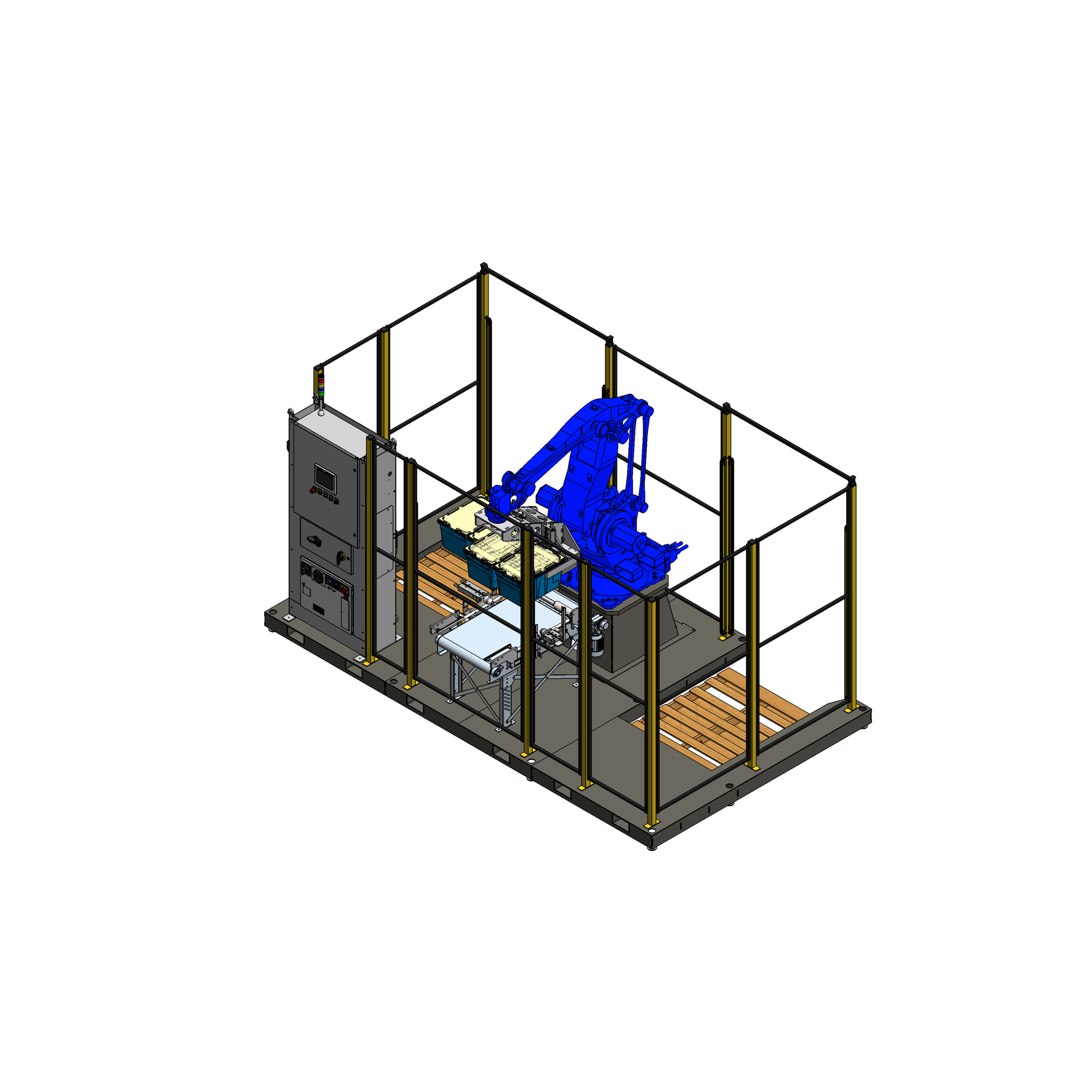

YASKAWA Robotic Palletizer for Totes, Fully Assembled
